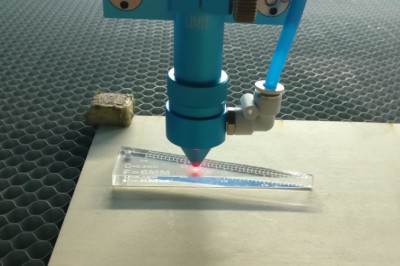

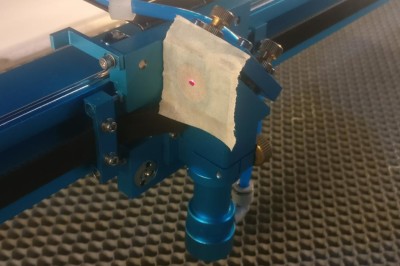

Why the red dot pointer not being able to come out from the laser head.
Release Time：2019/06/01Browsing Times：559
Here are the reasons: ● The red dot pointer is off Locate on the Red Dot Pointer Mount in the rear of the machine, and check if the Red Dot Pointer is off, like below. If yes, ple...
-
Chiller alarms unusually
Release Time：2019/06/01Browsing Times：545
Chiller lcd panel is showing normal, but the red light on and buzzer beeping. Here are the reasons: ● Water is not enough Please check the water level of chiller, like below: Kee...
-

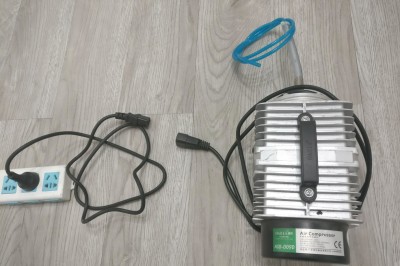

Air pump won’t work or no air assist when job starts
Release Time：2019/06/01Browsing Times：509
Here are the reasons: ● Air compressor break down How to check if air compressor break down, there’s a common way to connect it to the power directly using the power cable of chiller, th...
-

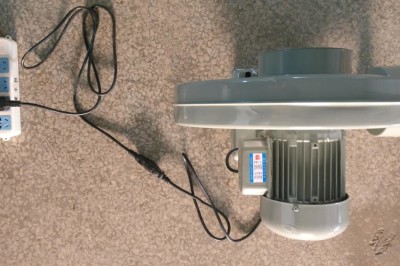

Exhaust fan cannot extract smoke or dust
Release Time：2019/06/01Browsing Times：853
Here are the reasons: ● Exhaust fan break down How to check if exhaust fan break down, there’s a common way to connect it to the power directly using the power cable of chiller, then che...
-
Cutting problem– Some point of the same piece of materials cannot be cut through
Release Time：2019/06/01Browsing Times：510
Here are the reasons: ● The needed focus is lost The bending of the material or the uneven working table can result in different focal lengths, especially for the large cutting graphic. ...
-
Engraving problem—the engraving quality is very poor
Release Time：2019/06/01Browsing Times：457
Here are the reasons: ● The needed focus is lost The bending of the material or the uneven working table can result in different focal lengths, especially for the large engraving graphic....
-

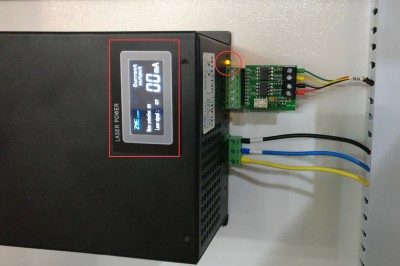

The laser tube won’t fire the beam
Release Time：2019/06/01Browsing Times：518
Here are the reasons: ● The laser switch is off Please make sure laser switch is on, then open lower left hand door panel (or back side door panel), check if the laser power supply is showing ...
-

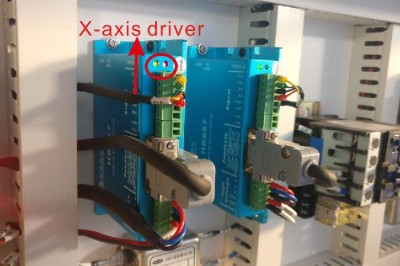

X-axis not moving at all
Release Time：2018/11/17Browsing Times：568
Here are the reasons: ● X-axis limit switch problem Locate on the left side of x-axis, please check if the wiring and roller lever of switch are well or not, like below. If they both se...
